FiltoSmart Thermo 100/200/300

External Aquarium Filter - For a Simplified Filtration

  • Integrated heater – Provides precise and uniform temperature levels and reduces the amount of equipment seen inside the aquarium by housing the heater in the unit

  • Compact filter with large filter surface – Multi-staged mechanical and biological filtration provides clear, healthy water and a high surface area for beneficial bacteria to colonize

  • No mess maintenance – Locking features are integrated into the inlet/outlet connection unit to ensure no accidental spillage or messy maintenance

  • Self-priming – Engineered for fast and easy startup and continued operation

  • Adjustable flow control – Flow can be adjusted for the inlet and outlet

  • Quiet operation – Sound dampening design

  • What’s in the Box – Aquarium Filter with an integrated heater, filter media, intake tube with inlet strainer, water distributor nozzle, spray bar, inlet and outlet adapters with flow control, tubing, fittings, removable base and power cables

  • Made in Italy, backed by German engineering

  • Fresh and marine water compatible

  • UL certified filter

  • 3 year warranty

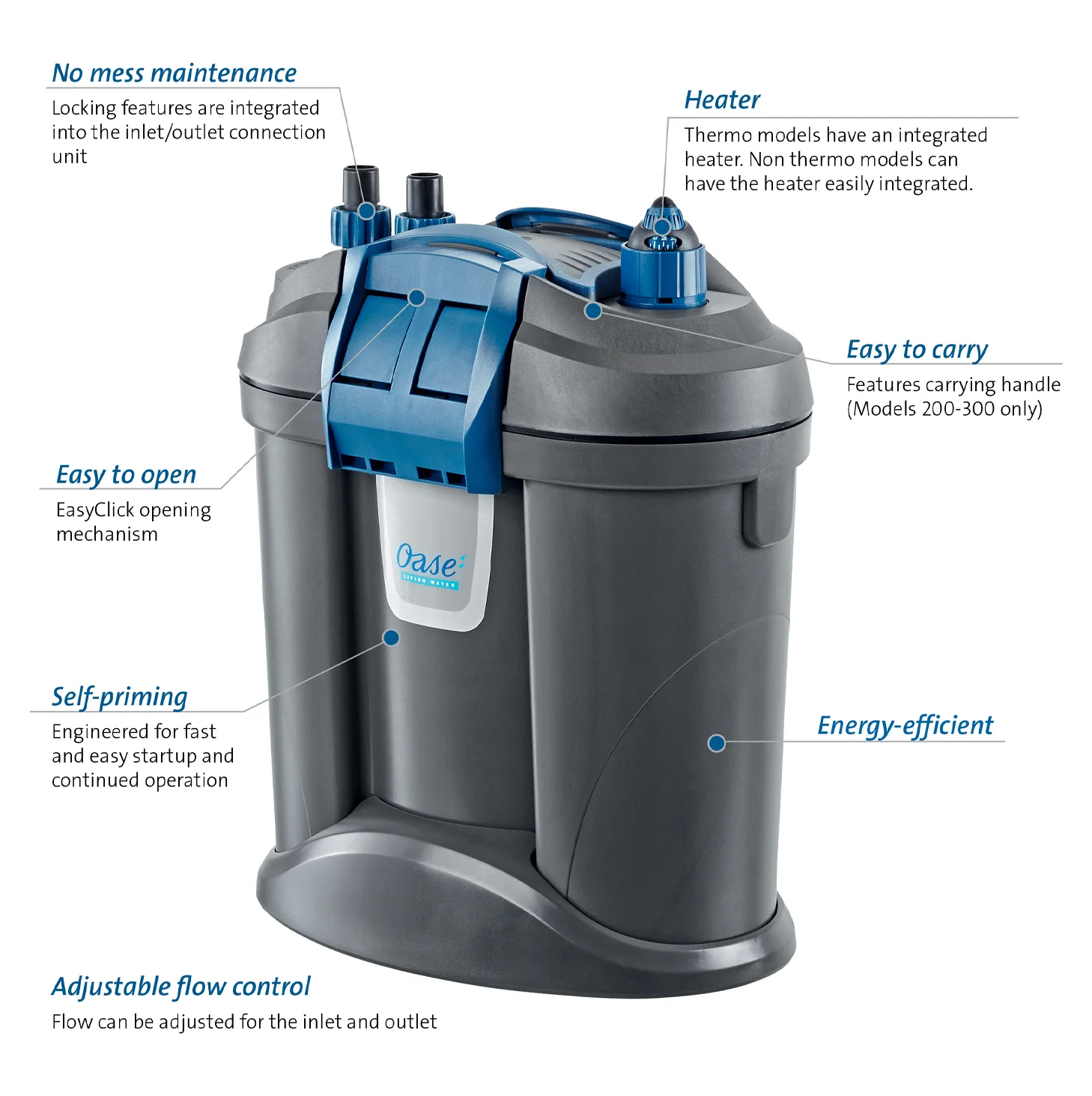

filtosmart 2.jpg
Specs FiltoSmart Thermo
100
FiltoSmart Thermo
200
FiltoSmart Thermo
300
Dimensions (in.) 8 x 5.5 x 10 11 x 7 x 13.3 11 x 7 x 16.9
Dimensions (mm) 205 x 139 x 260 288 x 179 x 337 288 x 179 x 428
Rated voltage 120V / 60 Hz
Power consumption, filter 11 watts 17 watts 23 watts
Power consumption, heater 100 watts 200 watts 300 watts
Power cord length 6 ft. (1.8 m)
Net weight 4.4 lbs. (2 kg) 9 lbs. (4.1 kg) 10.6 lbs. (4.8 kg)
Maximum flow rate 160 gph (600 l/h) 210 gph (800 l/h) 260 gph (1000 l/h)
Maximum head height 4.6 ft. (1.4 m) 3.3 ft. (1 m) 5 ft. (1.5 m)
Connection fits 1/2 in. ID (14 mm) 5/8 in. ID (16 mm)
Tubing 1/2 in. ID x 8 ft. (12/16 mm x 2.5 m) 5/8 in. ID x 8 ft. (16/22 mm x 2.5 m)
Filter volume 0.34 gal (1.3 L) 1.1 gal (4.2 L) 1.7 gal (6.4 L)
Pre-filter volume 0.18 gal (0.7 L) 0.4 gal (1.5 L)
Suitable for aquariums up to max. 30 gal (100 L) 55 gal (200 L) 80 gal (300 L)
Suitable for fresh and marine water
Warranty 3 Years
Downloads Manual & Safety Information
Store Buy Now Buy Now Buy Now
Part Number 55163 55164 55165

Filter Media

The FiltoSmart series uses filter foams of differing pore densities and filter media for optimal water quality and clarity. Each filter has its own replacement filter foam set. FiltoSmart 100-300 models use ceramic filter media and FiltoSmart 200-300 models also uses carbon filter media. Timing to replace the filter media varies upon aquarium size, number of fish and plants, and a decline in filter performance. It is best to only replace the ceramic filter media when you do a complete tank restart as to not disturb the beneficial biological load.

FiltoSmart
100
FiltoSmart
200
FiltoSmart
300
Filter Foam Set Filter Foam Set for the FiltoSmart 100 Filter Foam Set for the FiltoSmart 200 Filter Foam Set for the FiltoSmart 300
Ceramic filter media (14.8 oz per packet) 1 packet 2 packets 3 packets
Carbon filter media (4.6 oz per packet) - 2 packets 2 packets
